32ch servo controller with USB/UART

Use a 32ch RTRobot servo controller with USB/UART

A cheaper and more accessible version of the Lynxmotion controller board. This one has to be initialized before use (there is no documentation about that, I had to figure it out myself, so to save you time, here it is).

32ch RTRobot servo controller on robot

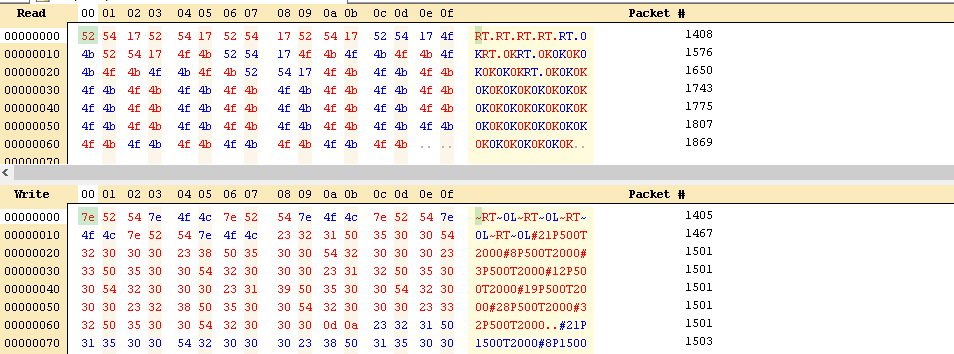

First, send this: ASCII: ~RT~OL HEX: 7E 52 54 7E 4F 4C

You will receive this response from the controller:

ASCII: RT (followed by the byte 0x17) HEX: 52 54 17

32ch RTRobot servo controller on robot

At the end of every command sent, you have to include “\r\n”.
