Replace ASUS N56XX BIOS
Hi, if your ASUS N56xx shows a black screen at startup, without even a logo or access to the BIOS, your BIOS is probably bricked. It happened to mine after a random number of boots. No worries, the solution is below, with the BIOS file, but you will need some tools and skills.
Warning: flashing a BIOS chip can permanently damage your motherboard and voids your warranty. Do it at your own risk, unplug the power adapter and the battery first, and protect the board from static electricity.
Required components
-

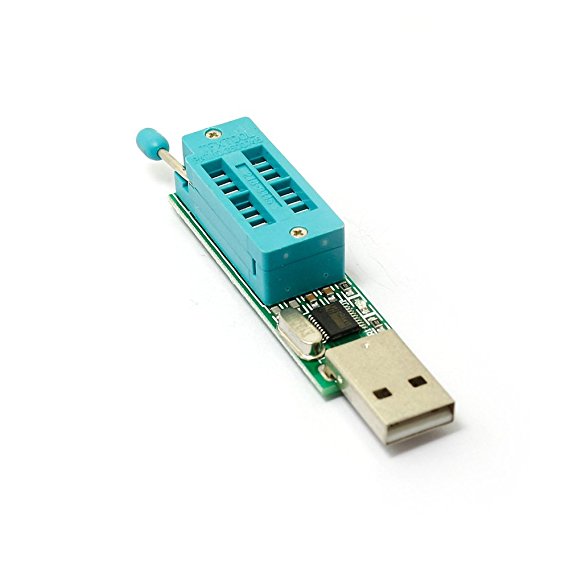

24CXX 24LCXX EEPROM programmer

-

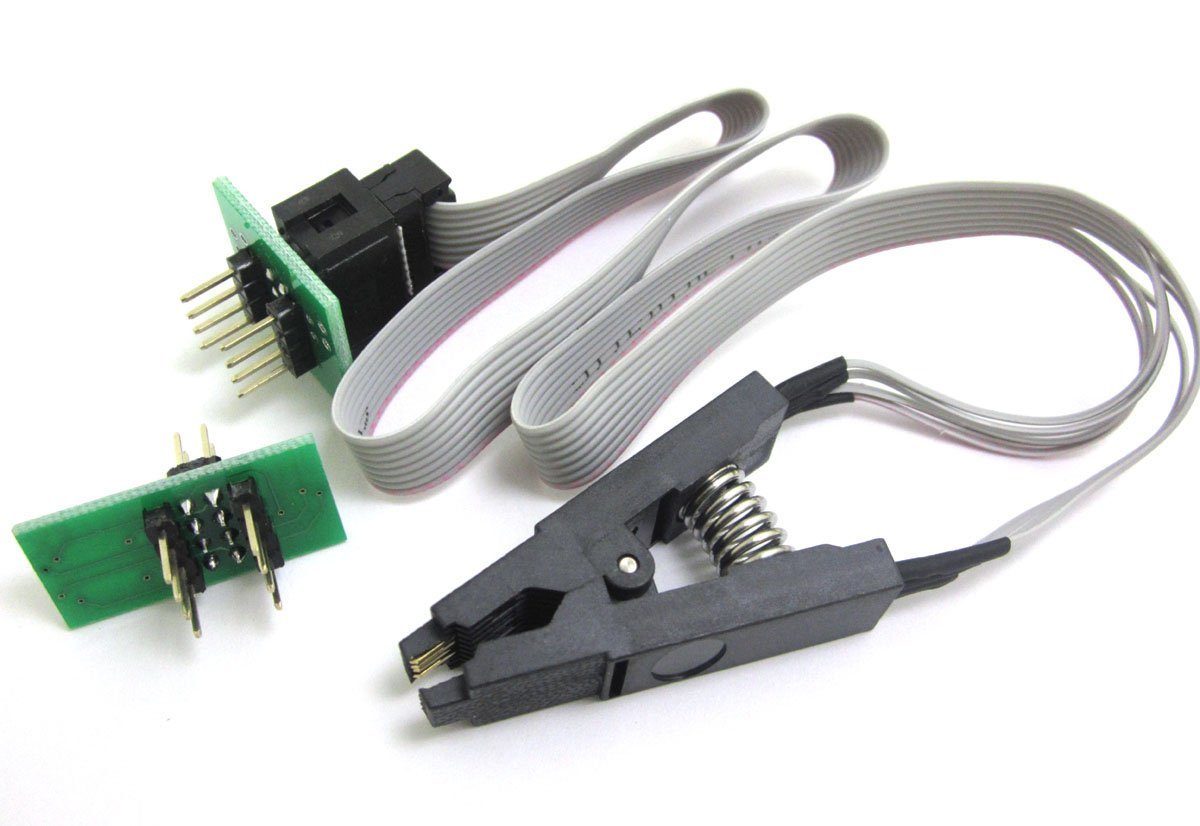

EEPROM clip

Download
- ASUS N56VB BIOS (version 202)
This is the only version that I could find online in 2016. On my N56VB, I lost the keyboard backlight but everything else works fine.
SHA-256:
4b72a579a81971252bf73d618105a061bd60aef5dd035283c08f0d26f3e687f2 - The EEPROM programmer software provided with your programmer (mine only runs on Windows XP, you can also use a virtual machine).
Prepare
- Place your Windows XP computer close to the motherboard (I would advise a USB extension cable).
-

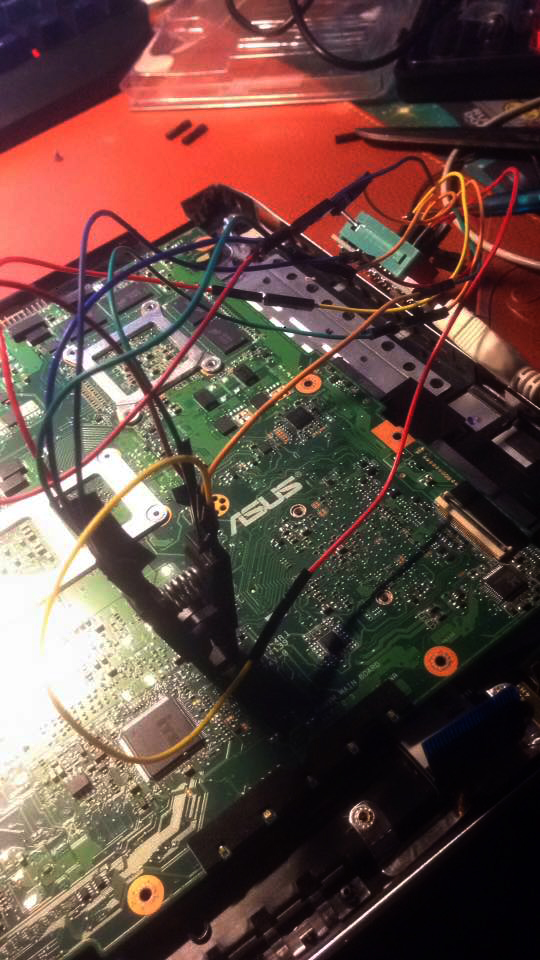

Connect the clip to the EEPROM of your motherboard.

Fix it
- Back up your bricked BIOS.
- Write the new BIOS.
- Reassemble half of your PC, just to test it first.
- Enjoy your working computer again.
